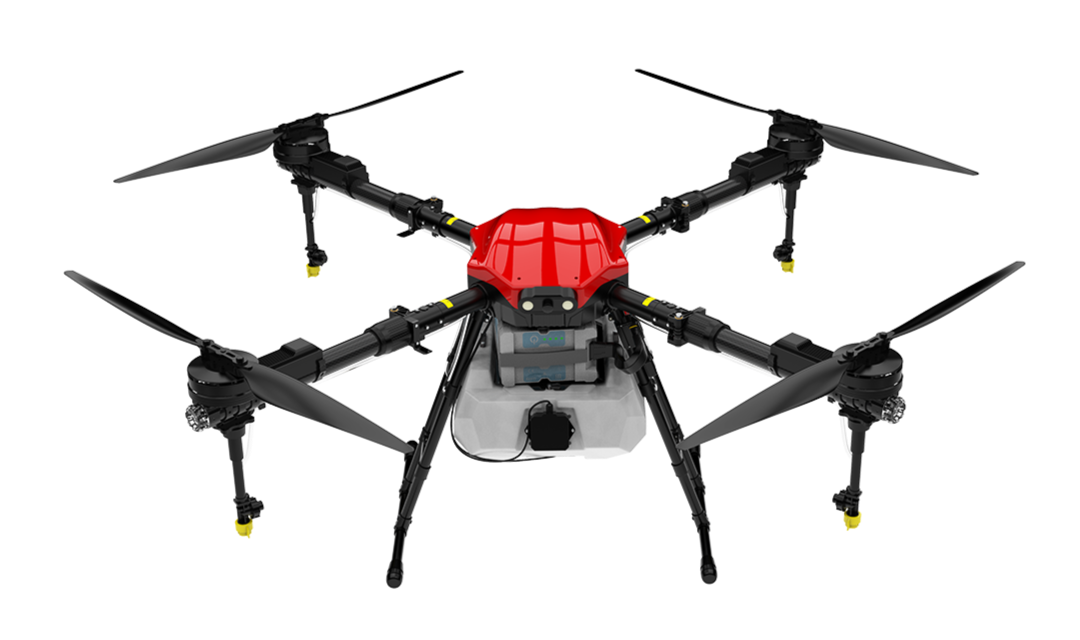

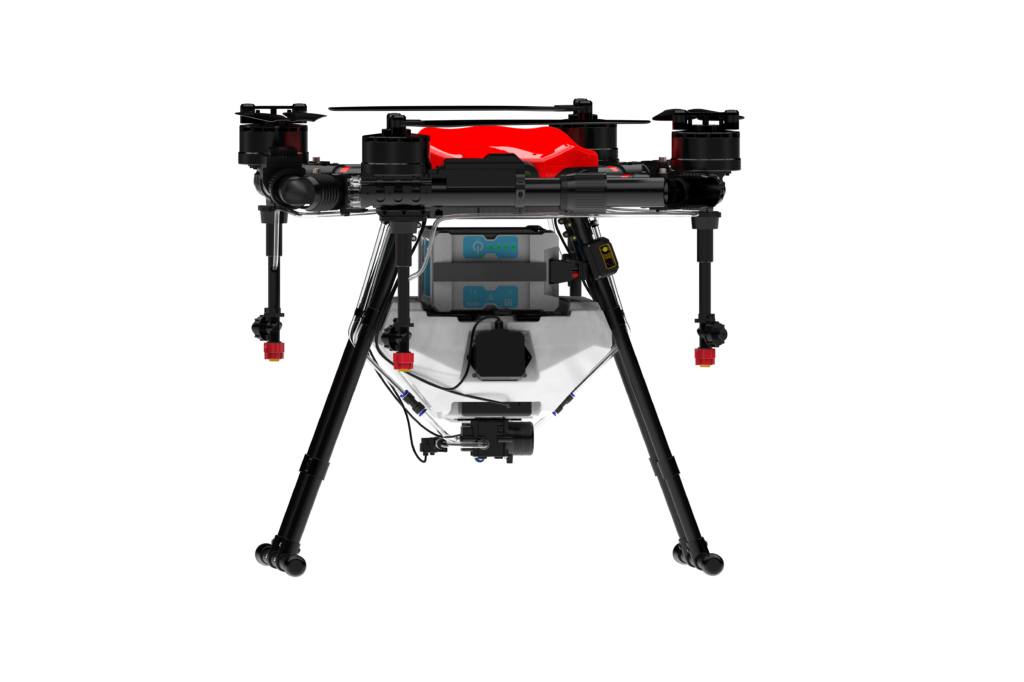

H4 Series Quadcopter
10|16|22KG Agricultural Drone

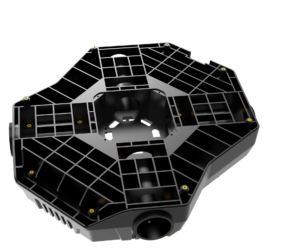

Strong structure
Integrated fiber plastic frame, internal multi link framework,strong and durable PCB is installed inside the frame, and the installation and wiringis simple without leakage

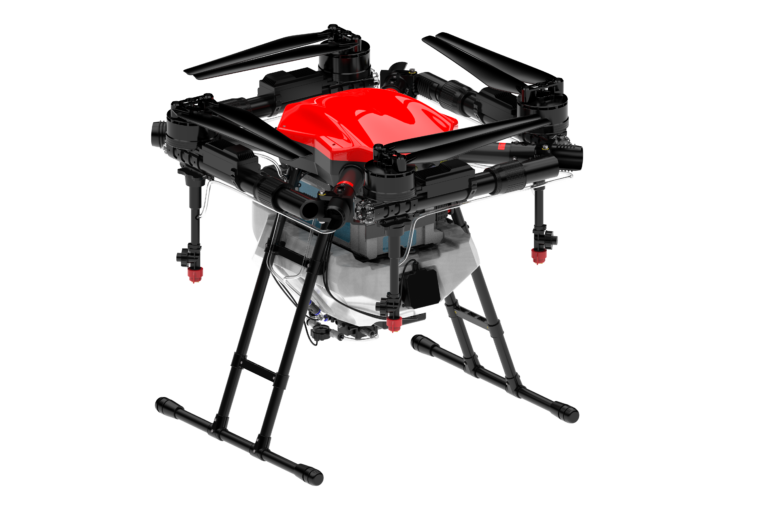

Encircling folding
The new folding part adopts the integrated injection molding process,and the machine arm has a plastic wrapped structure, which is not easy to loosen and more stable.
Classic surround folding design, simple and practical, reducing transportation space.
Multiple colors
Customize a variety of mainstream colors to meet customers’ selection needs
H4 series Quadcopter Specifications
| H410 | H416 | H422 | |
|---|---|---|---|
| developed dimension: | 1100*1100*600mm | 1100*1100*600mm | 1100*1100*600mm |
| folded size: | 650*650*600mm | 650*650*600mm | 650*650*600mm |
| diagonal wheelbase: | 1400mm | 1400mm | 1400mm |
| working voltage: | 44.4V(14S) | 58.8V(14S) | 58.8V(14S) |
| weight: | 12kg | 13kg | 13.5kg |
| load: | 10L | 16L | 22L |
| flight speed: | 3-8m/s m/s | 3-8m/s m/s | 3-8m/s m/s |
| spray width: | 3-5m/s m/s | 3-5m/s m/s | 3-5m/s m/s |
| Maximum takeoff weiaht: | 28kg | 36kg | 43kg |
| sprinkler system: | pressure nozzle | pressure nozzle | pressure nozzle |
| pump maximum pressure: | 0.8mpa | 0.8mpa | 0.8mpa |
| Spray Flow: | 4-8/min | 4-8/min | 4-8/min |
| flight time: | No-load(20-25min)full oad(7-10min) | No-load(20-25min)full oad(7-10min) | No-load(20-25min)full oad(7-10min) |
| Operation efficiency: | 1.5-3Acres/mu/Mmin min | 1.5-3Acres/mu/Mmin min | 1.5-3Acres/mu/Mmin min |
| Battery: | 12S16000mah | 14S18000mah | 14S 20000mah |
| charging time: | 15-30min/min | 15-30min/min | 15-30min/min |
| charging cycle: | 300-500times | 400-600times | 400-600times |
| daily efficiency: | 300-600Acres acres | 400-600Acres acres | 500-800Acres acres |
| Material: | carbon fiber/nylon fiber/aluminum alloy | carbon fiber/nylon fiber/aluminum alloy | carbon fiber/nylon fiber/aluminum alloy |
| packing: | 700*700*620mm | 700*700*620mm | 700*700*620mm |
