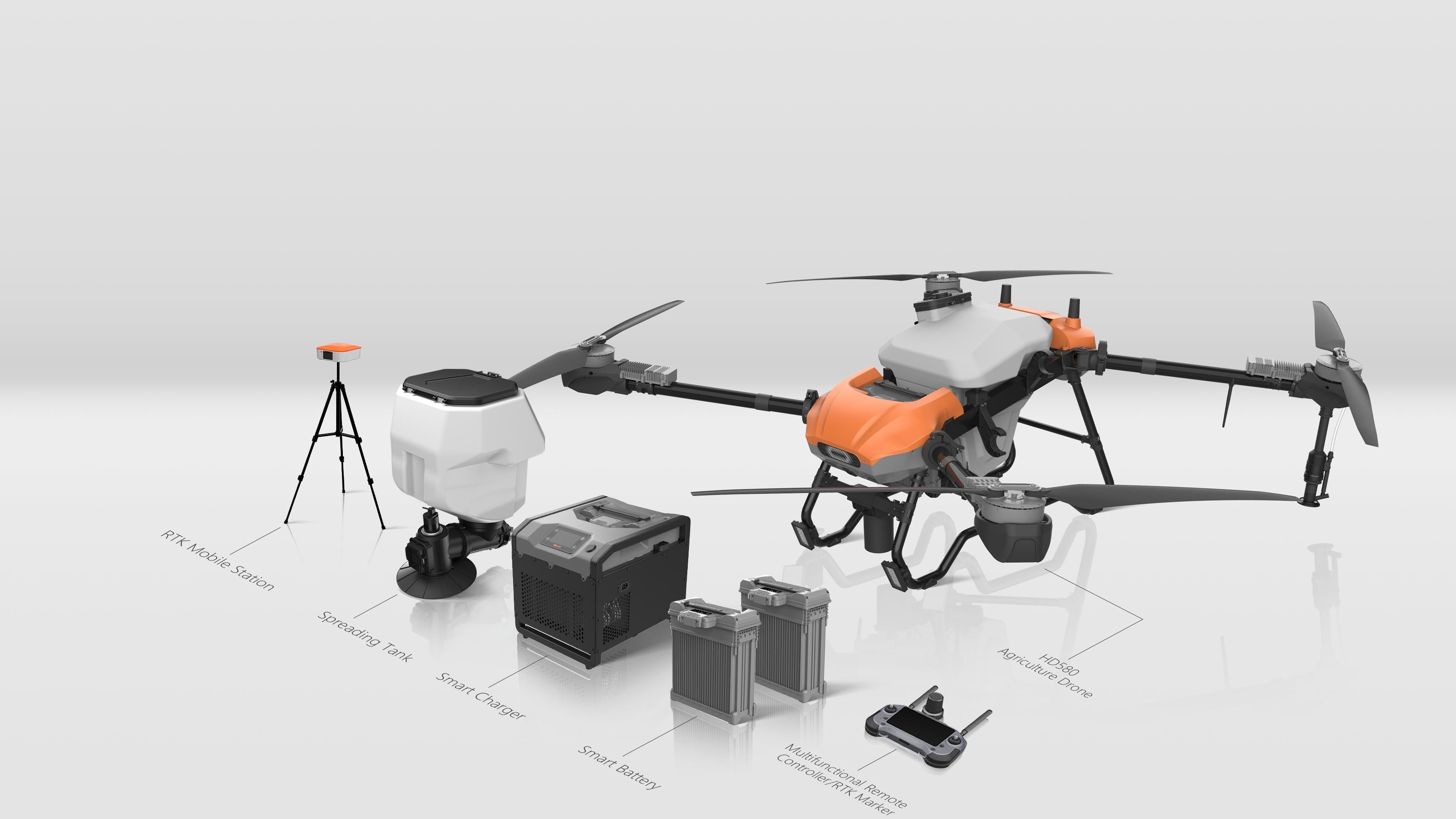

H580 Agricultural Drone
H580 agricultural drone is a versatile tool that combines spraying, sowing, and lifting functions to make farming tasks easier and more efficient. Equipped with a strong propulsion system and an advanced energy setup, it delivers over 300 kg of thrust. With carbon fiber propellers and an 18S high-voltage platform, it’s built to handle heavy loads with ease.
Large Load Capacity and High Flow Rate
70L Spraying Tank 40L/min
Maximum flow rate
Carries More, Delivers Faster
80kg spreading tank 300kg/min spreading speed
Power Redundancy for Safer Flight
76kg Maximum thrust of single motor set 13.8m/s Maximum Flight Speed
Two-Battery Cycle with Superior Cooling
30,000mAh Battery capacity
9,000W Volt Smart Charger , fully charged in 10 minutes
H580 Spraying System
High-Efficiency Centrifugal Nozzle
≥300 hours
Ultra-long Lifespan
30 L/min
Maximum Flow Rate
Prevents dripping
Equipped with Electromagnetic Valve
40 L/min
Four-Centrifugal Nozzle Upgrade Package
50-500 micrometers
Droplet Size
H580 Sowing System
Ultimate Efficiency, Excellence in Every Aspect
100L
Spreading Tank Capacity
80 kg
Maximum Load
300 kg/min
Flow Rate
≥95%
Operational Accuracy
H580 Energy system
18S 30,000mAh Intelligent Battery: Ensures long-lasting performance and reliability.
9000W Volt Smart 4.6 Intelligent Charger: Efficient and user-friendly charging solution.
Grille Design with 700% Increased Heat Dissipation Area: Maximizes cooling efficiency.
1500 Cycles with Less Than 7% Battery Degradation: Delivers outstanding durability and extended battery life.
Active + Passive Cooling System: Keeps Maintains Temperature Below 65°C for Optimal Performance and Safety
H580 Power system
62-inch carbon fiber propellers
The maximum thrust of a single motor set is 76 kg
High power ESC 350A
With a thrust-to-weight ratio of 2.2
H580 Perception System
FPV
120° Ultra-WideAngle Lens Electronic Stabilization Night Vision Enhancement Virtual Gimbal
360-Degree Spherical Safety Sensing
H580 Flight Control System
THE"COMMAND CENTER"IN THE SKY ENSURING A SUCCESSFUL FLIGHT EVERY TIME
H580 Remote Controller System
2000 Meter Point-to-PointTransmission Distance
4G Module for EnhancedVideo Transmission
Improved Communication Capability for Better Flight Safety and Expanded Application Scenarios

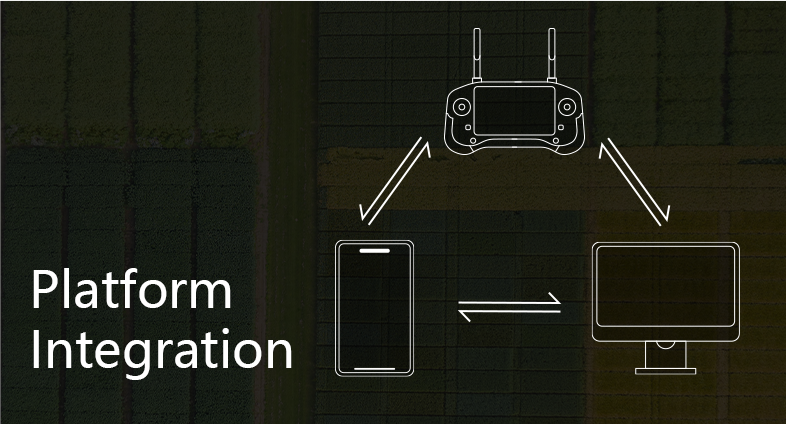

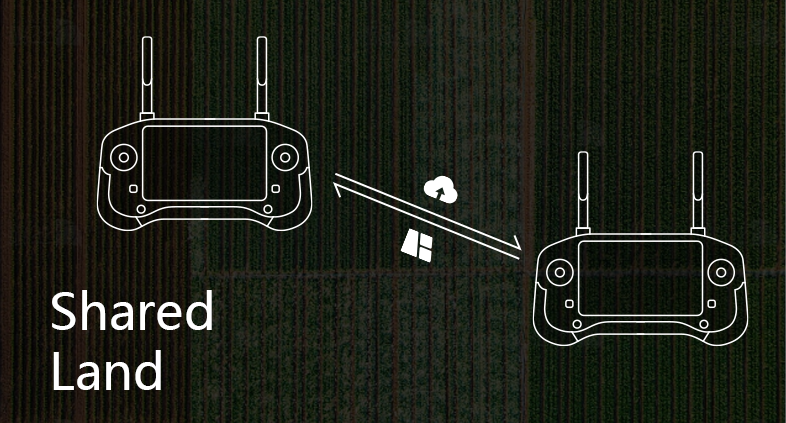

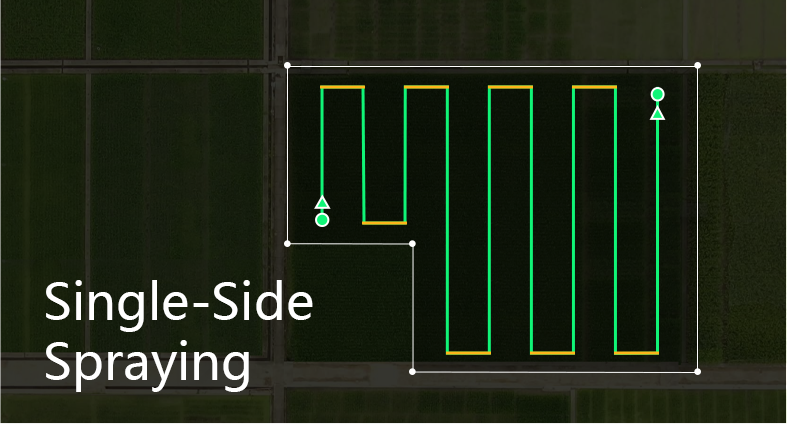

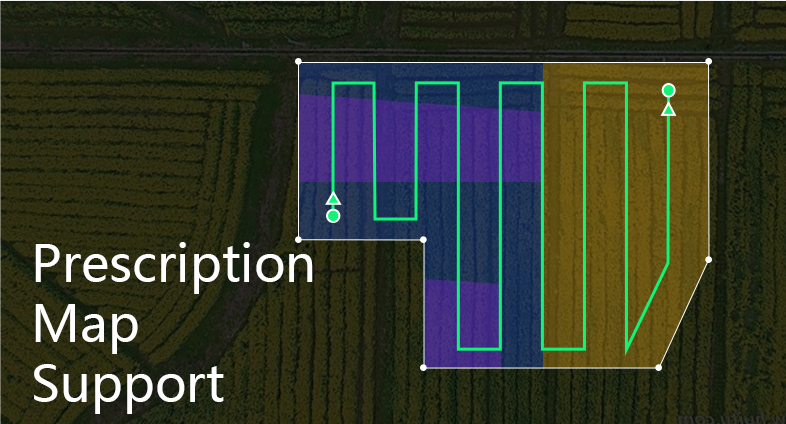

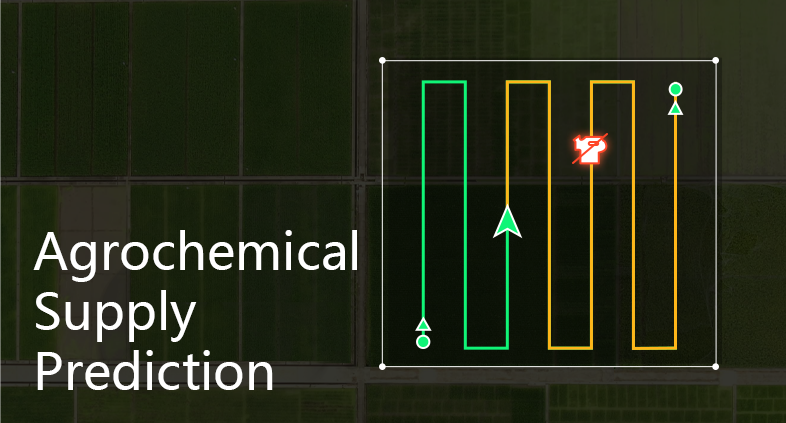

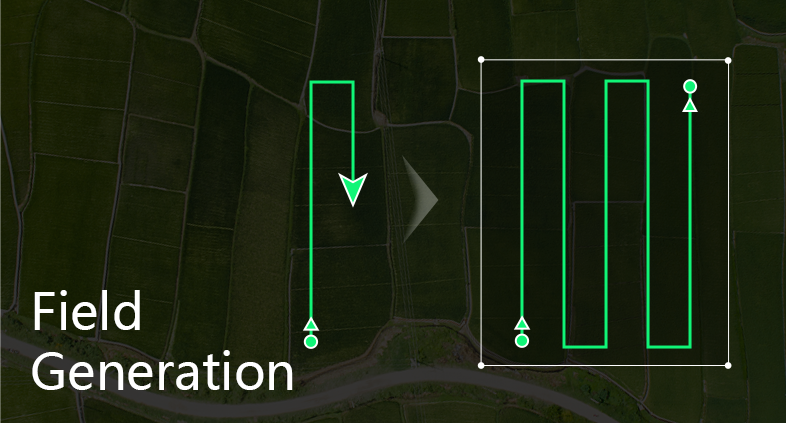

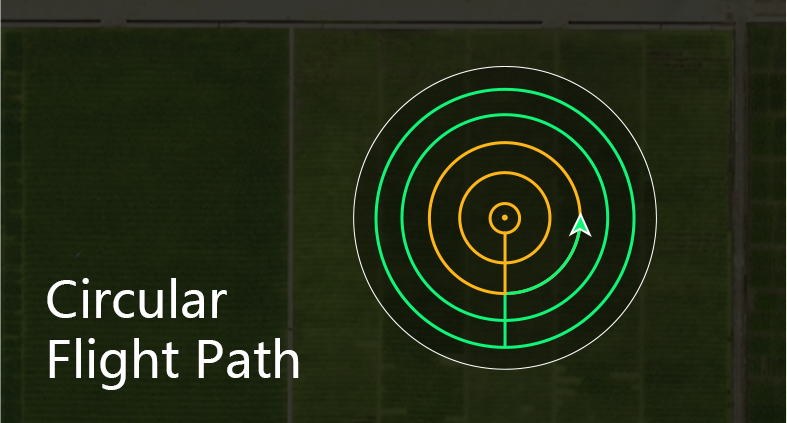

H580 Intelligent Route Planning

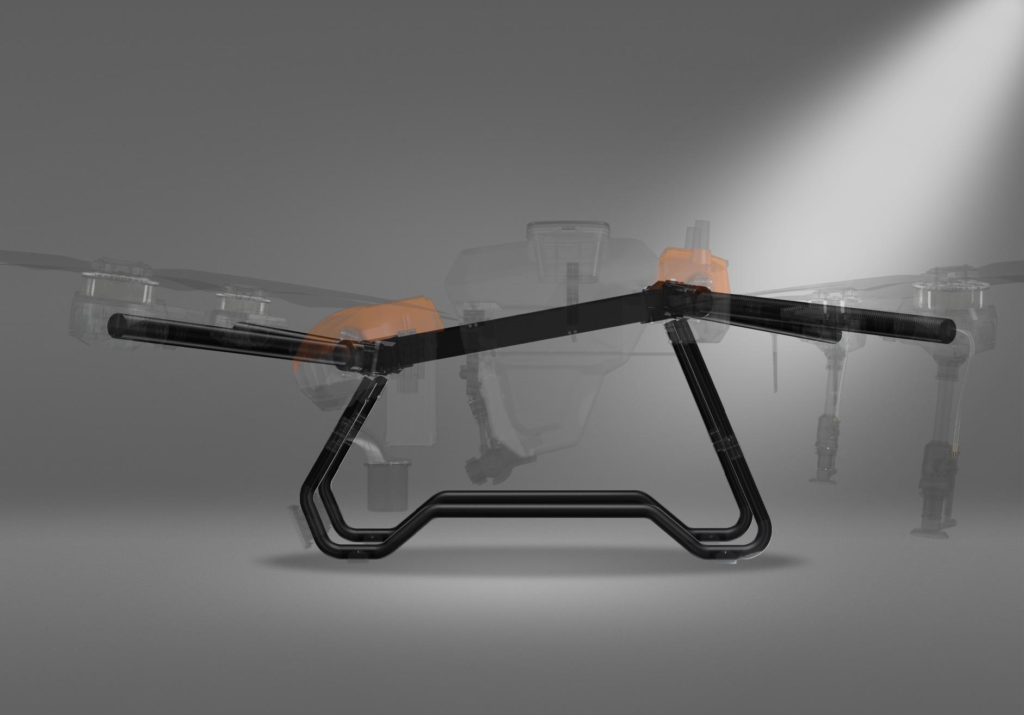

H580 Design Highlights

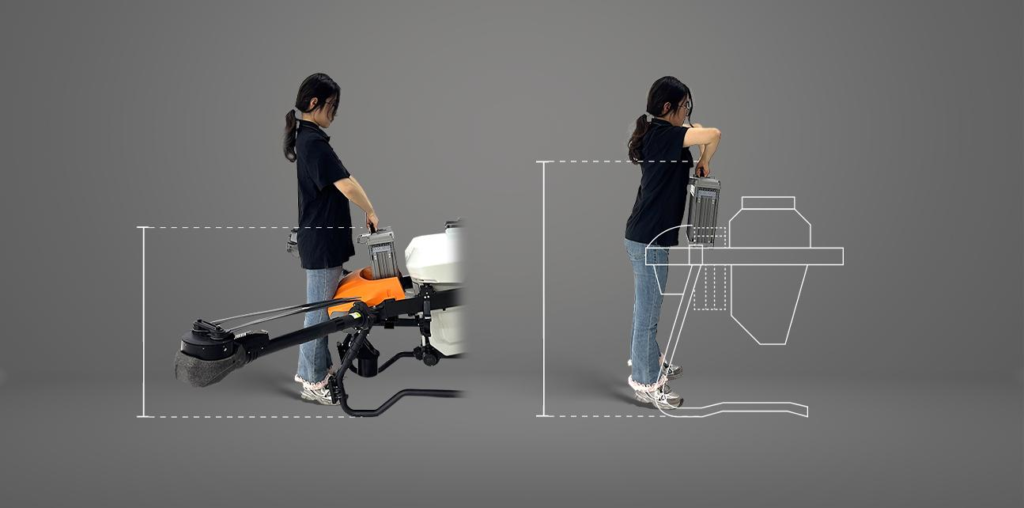

Reduced Height For Easier Replacement
Inclined Four-Axis Platform Foldable Structure

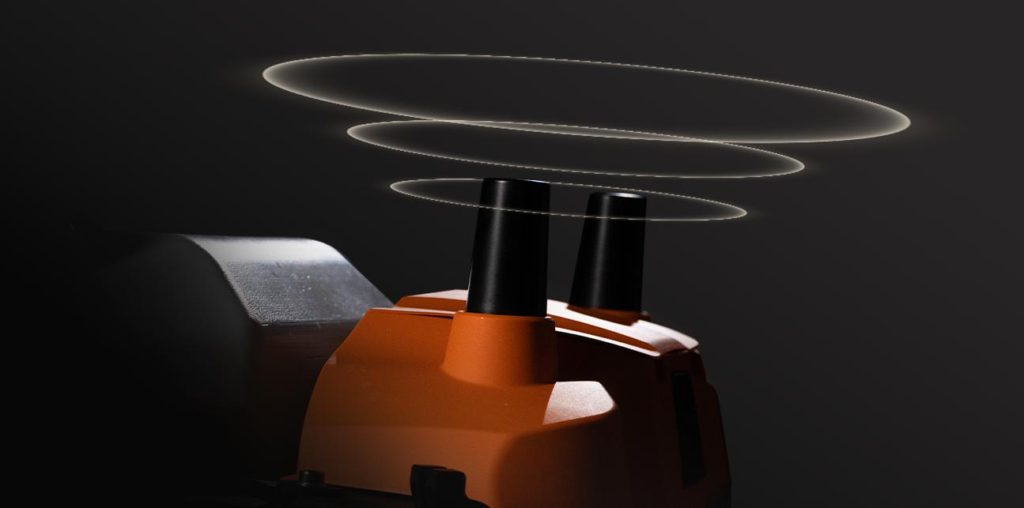

Clear Space Ensuring More Stable RTK Signal Reception
