H408 Auto Steering System
Precision in Steering, Excellence in Harvest

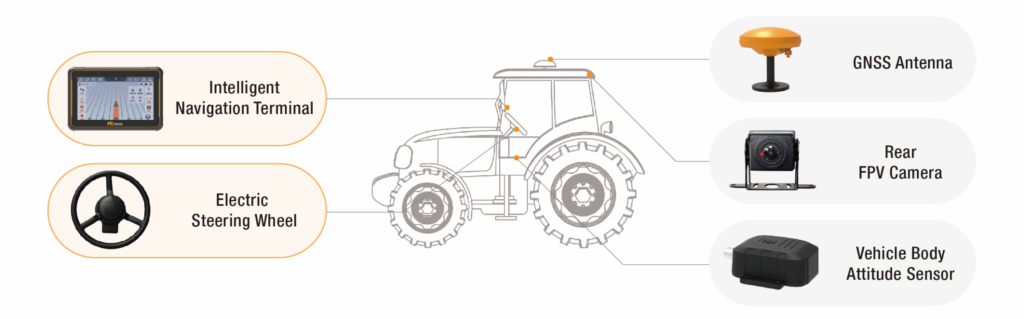

The H408 Auto Steering System utilizes advanced high-precision GNSS positioning, and automated control technologies to optimize agricultural operations. This system ensures centimeter-level accuracy, significantly improving operational efficiency, land utilization, and resource management. By reducing manual labor requirements and operational costs, it is ideal for a wide range of applications, including ridging, plowing, pesticide spraying, and sowing.
Satellite-based differential
Applicable to PPP (Free) and
PPP-AR (High Precision)
ISOBUS
Supports UT/TC and Compatible with Leading Agricultural Equipment Brands
Automatic U-Turn
30min
Easy Installation in 20 Minutes Quick Calibration in 10 Minutes
Specifications
Display Terminal
| Display Type | 10.1-inch LCD Display/Resolution: 1024*600/Capacitive Touch Screen,Supports 5-point Touch |
| Dimensions | 281mm*187mm*48mm |
| Input Voltage | DC 6.5-36V |
| Communication | Bluetooth:Bluetooth2.1+ EDR/ 3.0 /4.1 LE / 4.2 BLE; Wifi:2.4GHz+5GHz/802.11a/b/g/n,GSM: Global 4c |
| Protection Rating | IP67 |
| Operating Temperature | -20°C to 70°C/Humidity: 0% to 90% |
| Storage Temperature | -30°C to 80°C/Humidity: 30% to 95% |
Motor
| Operating Voltage | 9V~18V DC |
| Peak Torque | 14±2N.m |
| Weight | About 5kg |
Satellite Receiver
| Operating Current | <15A |
| Signal | BDS B1, B2I, B3I; GPS L1, L2,L5; GLONASS L1,L2; GalileoE1, E5a, E5b; 0ZSS L1. L2,L5 |
| Antenna Type | Single / Dual Antenna |
